AMES-300 Tissue Embedding System

Descripción

AMES-300 Tissue Embedding System

It is independent design, can put the position left-to-right or right-to-left, to meet different habits of customers.

AMES-300 Tissue Embedding System Característica:

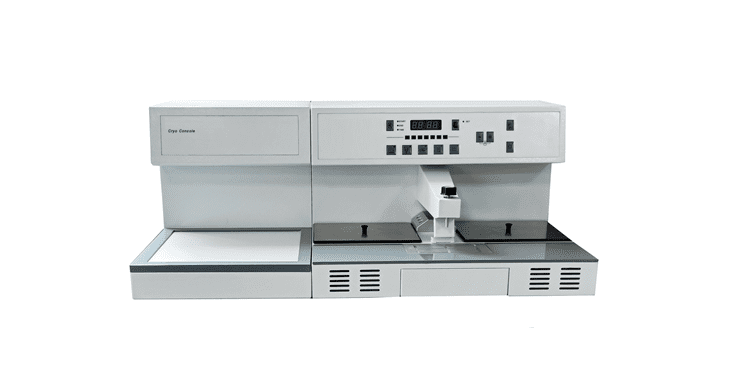

The Embedding center is composed of two modules, main console and Cryo Console. It is independent design, can put the position left-to-right or right-to-left, to meet different habits of customers. The large working surface allows user processing many samples at the same time. The temperature and work start time can be settable through the control panel.

1. The machine adopts fully automatic program control, and can preset an automatic start time of 7 days.
2. The wax bath adopts overheating protection, safe and reliable, filtering design, effectively avoiding paraffin blockage, large capacity, and can meet the embedding of 250 tissues at a time.
3. With sensitive micro switch and foot switch for operator to choose.
4. It has a unique design of the embedded upper-level lighting system, with enough brightness to determine the position of the small tissue package.
5. This machine has 5 independent temperature control systems, among which the temperature control of wax tank, wax nozzle, workbench, storage tank and tweezers block can be adjusted arbitrarily within the range of 0～99℃.
6. With automatic power-on function, different power-on time can be set every day.
7. Paraffin recovery design, high performance solenoid valve control.
8. It adopts split design, embedding machine and cold table can be combined at will.

Cryo Console:

1. It is composed of a compressor cooled work surface held to chill the paraffin blocks rapidly.
2. The Teflon coated surface allows a minimum ice formation and easy cleaning.
3. It can be used as a standalone unit near the microtome station.

AMES-300 Tissue Embedding System Datos técnicos principales:

Main Console:

1. Nominal supply voltage: 220V/50HZ or 110V/60HZ
2. Maximum power draw: 600-800W
3. Working temperature: From ambient to 99℃
4. Increments:  1centigrade
5. Capacity:  Paraffin reservoir: 2L

Cassettes/molds tray: 1.4L

6.Dimensions: (W*D*H) 560*530*350mm

7.Weight: 30kg

Cryo Console:

1. Nominal supply voltage: 220V/50HZor110V/60HZ
2. Maximum power draw: 110VA
3. Working temperature: From ambient to –20 centigrade
4. Increments 1 centigrade
5. Dimensions: (W*D*H) 345mm * 600mm * 375mm
6. Weight: 24kg

AMES-300 Tissue Embedding System Accesorios:

Lista de ajuste estándar

1. Foot Switch 1 pc
2. 2. Fuse (5 A)     2 pcs
3. Power line  2 line

Accesorios opcionales

1. Temperature sensor

Información del paquete:

Cada instrumento embalado en caja de madera.

Packing Size for Main console: 650*600*570mm

Packing Size for Cryo console: 650*440*570mm

Gross Weight for main console: 42kg

Gross Weight for Cryo console: 35kg

AMES-300 Tissue Embedding System
